How to efficiently clear snow with a pickup truck converted into a snow plow? Analysis of snow shovel technical parameters and applicable scenarios

Snow and ice on roads in winter are a common challenge for urban traffic management. Traditional manual snow removal is inefficient and labor-intensive, while mechanical snow removal equipment significantly improves snow removal efficiency through automated operations. As one of the typical types of equipment, the pickup-modified snow plow truck achieves a balance between flexibility and operating capabilities by combining a snow shovel with a pickup truck chassis. It is suitable for the snow clearing needs of urban main roads, secondary roads and some branch roads.

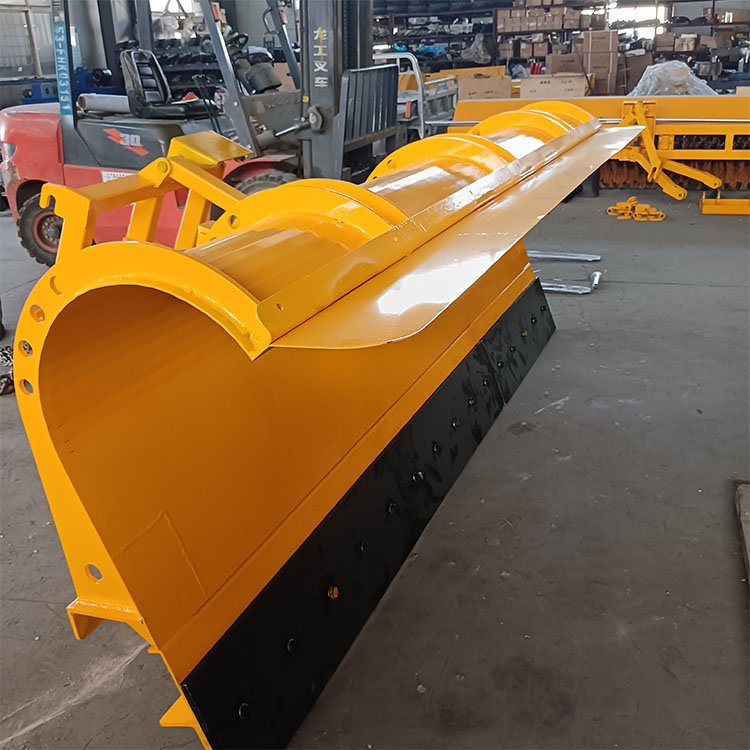

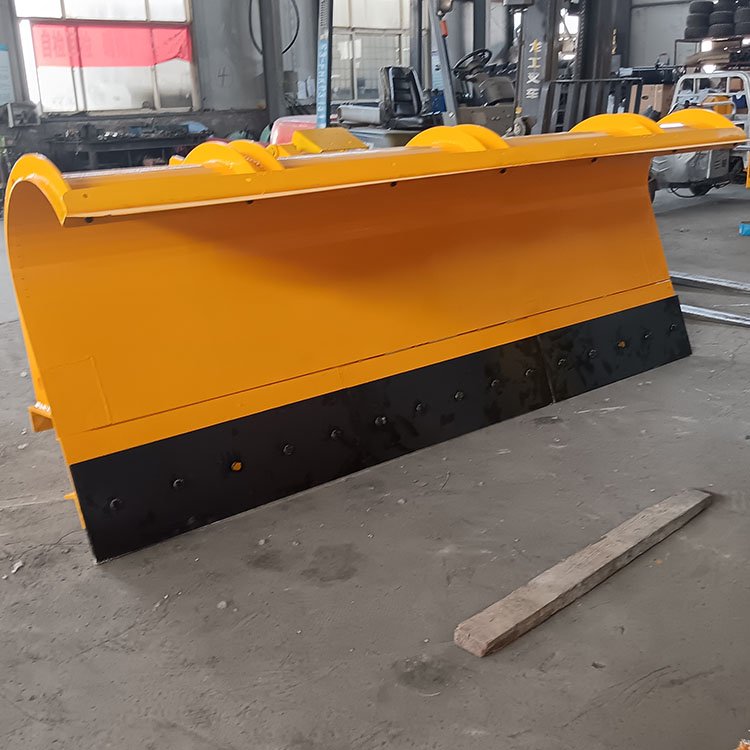

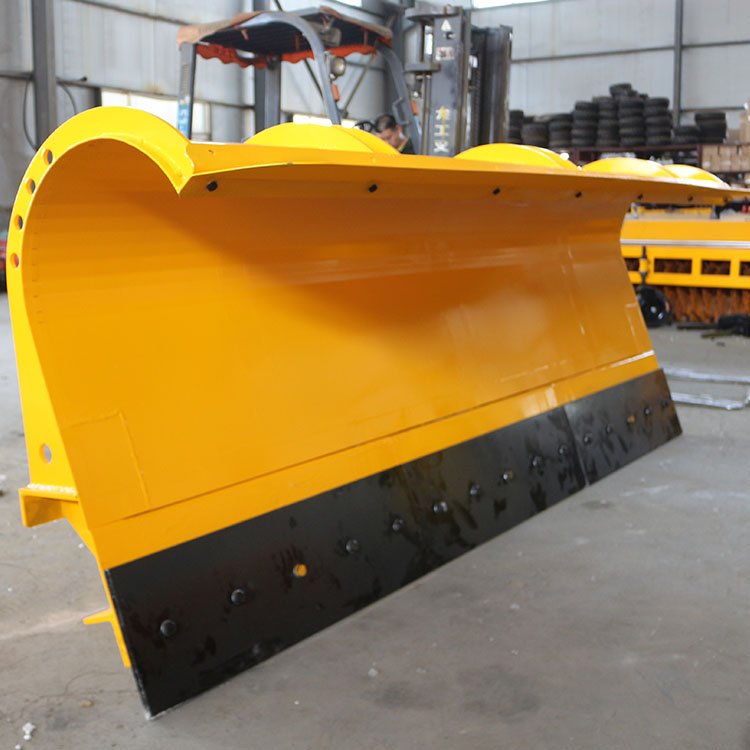

1. Technical principles and core structure: The pickup-modified snow plow uses the pickup truck as the power source and drives the snow shovel through the hydraulic system to complete the snow clearing operation. Its core components include snow shovels, hydraulic cylinders, steering mechanisms and obstacle avoidance devices. The snow shovel is made of high-strength steel, with an arc-shaped blade design that can effectively gather and push snow. The hydraulic cylinder is responsible for controlling the lifting and steering of the shovel body. The lift cylinder has a stroke of 200mm, ensuring that the height of the shovel body can be adjusted according to the undulations of the road. The steering cylinder has a stroke of 180mm, and the snow pusher has a left and right turning angle of ≥±30°, so that the equipment can maintain continuous operation when turning. The obstacle avoidance device is realized by a spring or hydraulic buffer structure. When the shovel body encounters an obstacle, it can automatically lift up by 150mm to avoid damage. The design of the ground clearance of 400-500mm further improves the passability.

Snow and ice on roads in winter are a common challenge for urban traffic management. Traditional manual snow removal is inefficient and labor-intensive, while mechanical snow removal equipment significantly improves snow removal efficiency through automated operations. As one of the typical types of equipment, the pickup-modified snow plow truck achieves a balance between flexibility and operating capabilities by combining a snow shovel with a pickup truck chassis. It is suitable for the snow clearing needs of urban main roads, secondary roads and some branch roads.

1. Technical principles and core structure: The pickup-modified snow plow uses the pickup truck as the power source and drives the snow shovel through the hydraulic system to complete the snow clearing operation. Its core components include snow shovels, hydraulic cylinders, steering mechanisms and obstacle avoidance devices. The snow shovel is made of high-strength steel, with an arc-shaped blade design that can effectively gather and push snow. The hydraulic cylinder is responsible for controlling the lifting and steering of the shovel body. The lift cylinder has a stroke of 200mm, ensuring that the height of the shovel body can be adjusted according to the undulations of the road. The steering cylinder has a stroke of 180mm, and the snow pusher has a left and right turning angle of ≥±30°, so that the equipment can maintain continuous operation when turning. The obstacle avoidance device is realized by a spring or hydraulic buffer structure. When the shovel body encounters an obstacle, it can automatically lift up by 150mm to avoid damage. The design of the ground clearance of 400-500mm further improves the passability.

2. Operation parameters and efficiency performance: The working width of this type of equipment covers 2800-3500mm. The adaptive model can be selected according to the road width, and the single operation covers a large area. The upper limit of snow removal thickness is 200mm, which can cope with most snowfall scenarios; the snow removal efficiency is ≥90%, which means that under standard operating conditions, the snow removal rate is close to complete. The working speed is set to 15-30km/h, which not only ensures operating efficiency, but also avoids incomplete snow clearing or equipment loss caused by too fast speed. The 24V working voltage hydraulic system is powered by the pickup truck's on-board power supply, eliminating the need for additional power sources and simplifying the equipment structure. The design of a snow shovel with a total weight of ≥1000KG improves the fit between the shovel body and the road surface by increasing downforce, further optimizing the snow clearing effect.

3. Operation methods and safety regulations: The operator needs to start the pickup engine first, adjust the snow shovel to the initial height (usually 100-150mm above the ground) through the control panel in the cab, and then drive at a constant speed of 15-30km/h. During the operation, you need to pay attention to road obstacles. When the obstacle avoidance device is triggered, you should slow down or stop to check the status of the shovel body. Maintenance of the hydraulic system is key. It is necessary to regularly check whether the oil pipe connection is loose and whether the oil is sufficient to avoid malfunction due to hydraulic leakage. In addition, the engine needs to be preheated before winter operation to ensure the fluidity of the hydraulic oil; the remaining snow on the shovel body needs to be cleaned after operation to prevent freezing that will affect the next use.

🛒 Zhongkai Snow Pusher Pickup Truck Modified Snow Plow Truck 2.5 Meter Snow Pusher for Snow Clearance on Urban Roads

4. Technical highlights and scene adaptation: Compared with large snowplows, the advantage of pickup truck-modified snowplows is flexibility. Its 3500mm body length can easily enter narrow roads or residential areas, and the design of the front-mounted snow shovel avoids the blind spot of the traditional rear-mounted shovel body when reversing. Thickened push plates (usually thickness ≥10mm) improve wear resistance and extend the service life of equipment; anti-skid tires enhance the grip of ice and snow roads and reduce the risk of skidding by deepening the tread design. The feature of supporting customization allows it to be adapted to different brands of pickup trucks, further expanding the scope of applications. From heavy snow scenes in severe cold areas in the north to light snow clearing in wet snow areas in the south, adaptable solutions can be found.
